Membrane Element
Category:
Products
Description
Membrane Element Parameters

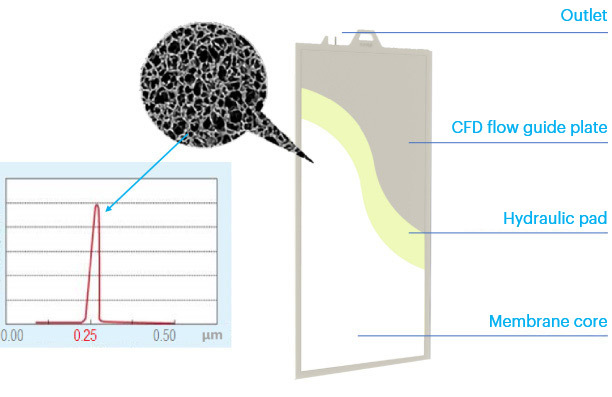

The membrane element consists of a membrane core, hydraulic pad, CFD flow guide plate, and outlet, with a nominal pore size height concentrated at 0.25μm.
| Model | GE – 01 | ||
| Effective Area (m²/piece) 2 /piece | 0.8 | ||
| L×B×H (mm) | 1000×490×7 | ||
| Weight (kg) | 2.5 | ||
| Nominal Pore Size (μm) | 0.25 | ||
| Membrane Core | Membrane Material | Main Material | CPVC |
| Auxiliary Material | SE | ||
| Base Material | PET | ||
| Support Plate | ABS | ||
| Flux (m³/d) 3/m2 ·d | 0.2~1.0 | ||
| pH | 3~10 | ||
Product Features
Standardized Design
Convenient expansion and high installation efficiency.
Modular Design
Convenient inspection, installation, and maintenance.
Energy-saving Design
Open CFD perforated air pipe scrubbing, low energy consumption.
Customized Design
Meet customer's individual needs, reduce costs and increase efficiency.
Integrated Design
Built-in membrane elements, water collection pipes and scrubbing air ducts, high packing density.
