Single-layer Membrane Module
Suitable for small wastewater treatment plants (stations); landfill leachate and other scenarios
Typical Model: GM160-2026
GMBR® Membrane Modules
The GMBR® plate membrane module consists of a perforated scrubbing air duct, a membrane scrubbing frame, membrane elements, a membrane limit frame, a water collecting branch pipe, and a water collecting main pipe. The core functional structure is the membrane element.
Category:
Products
Description
Product Composition

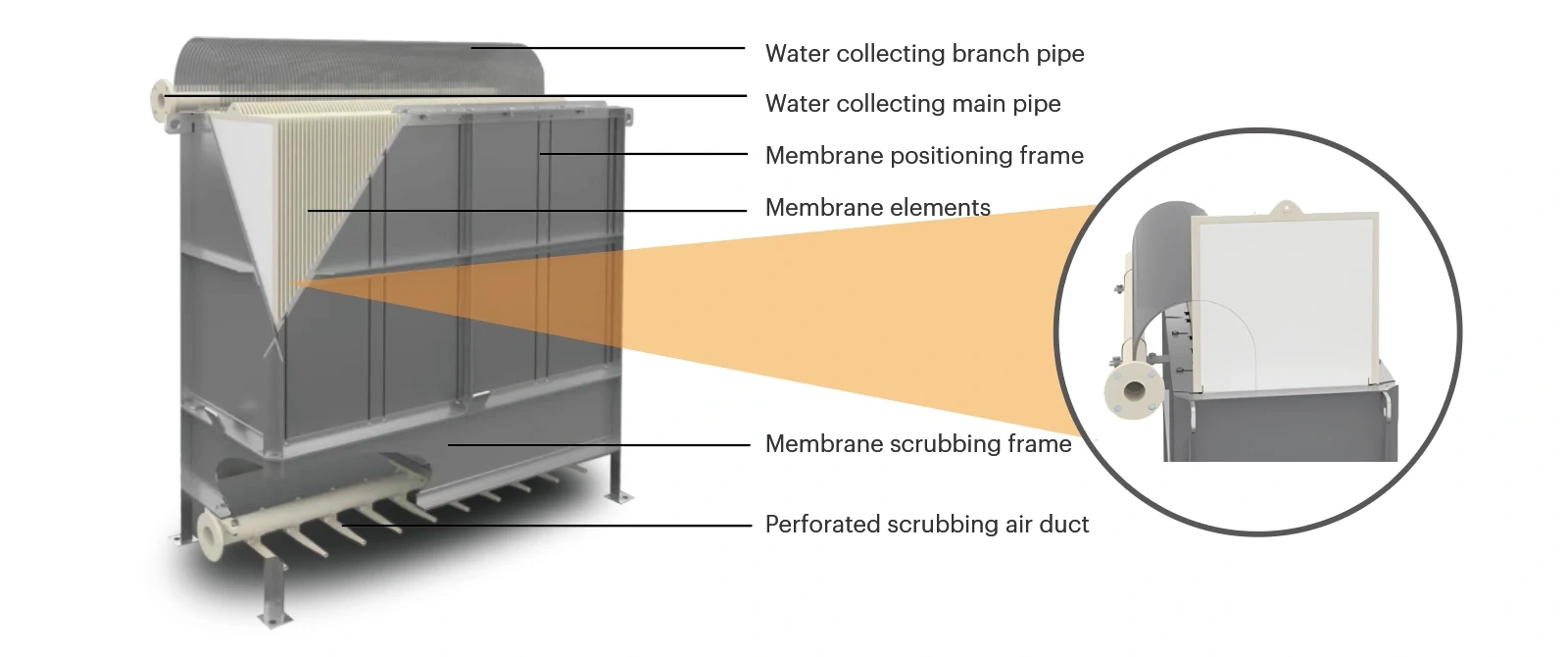

The GMBR® flat membrane module consists of a perforated scrubbing air duct, a membrane scrubbing frame, membrane elements, a membrane positioning frame, a water collecting branch pipe, and a water collecting main pipe. The core functional structure is the membrane element.
Specifications and Models
Double-layer Membrane Module
Suitable for medium and small-sized municipal wastewater treatment plants; large and medium-sized industrial wastewater treatment stations, etc.
Typical Model: GM320-2841
Three-layer Membrane Module
Suitable for large and medium-sized municipal wastewater treatment plants; large industrial wastewater treatment stations, etc.
Typical Model: GM480-3454

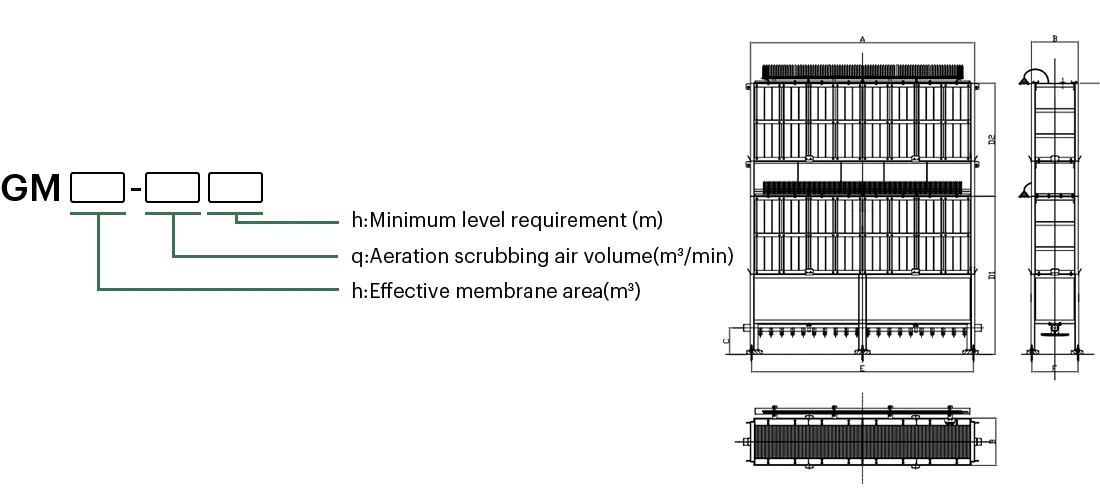

Three-view of Multi-layer Membrane Module
| Model | Effective Area （m 2 ） | Treatment Capacity* （m 3 /d) | Water Depth （m） | A | B | C | D | D1 | D2 | E | F | |
| Single Layer | GM 24-0218 | 24 | 12 | 1.8 | 512 | 590 | 150 | 1515 | 500 | 1015 | 502 | 600 |
| GM 32-0418 | 32 | 16 | 1.8 | 652 | 590 | 150 | 1515 | 500 | 1015 | 642 | 600 | |
| GM 48-0618 | 48 | 24 | 1.8 | 932 | 590 | 150 | 1515 | 500 | 1015 | 922 | 600 | |
| GM 64-0818 | 64 | 32 | 1.8 | 1212 | 590 | 150 | 1515 | 500 | 1015 | 1202 | 600 | |
| GM 80-1018 | 80 | 40 | 1.8 | 1492 | 590 | 150 | 1515 | 500 | 1015 | 1482 | 600 | |
| GM 96-1218 | 96 | 48 | 1.8 | 1772 | 590 | 150 | 1515 | 500 | 1015 | 1762 | 600 | |
| GM 120-1518 | 120 | 60 | 1.8 | 2221 | 590 | 150 | 1515 | 500 | 1015 | 2194 | 600 | |
| GM 160-2026 | 160 | 80 | 2.6 | 2921 | 610 | 150 | 1515 | 500 | 1015 | 2894 | 600 | |
| Multi-layer | GM 256-2241 | 256 | 120 | 4.1 | 2361 | 610 | 290 | 3490 | 2015 | 1475 | 2334 | 600 |
| GM 320-2841 | 320 | 160 | 4.1 | 2921 | 610 | 290 | 3490 | 2015 | 1475 | 2894 | 600 | |
| GM 384-3354 | 384 | 190 | 5.4 | 2361 | 610 | 290 | 4965 | 2015 | 2950 | 2334 | 600 | |
| GM 480-3454 | 480 | 240 | 5.4 | 2921 | 610 | 290 | 4965 | 2015 | 2950 | 2894 | 600 | |
*Based on municipal wastewater
