Membrane Equipment
Category:
Products
Description

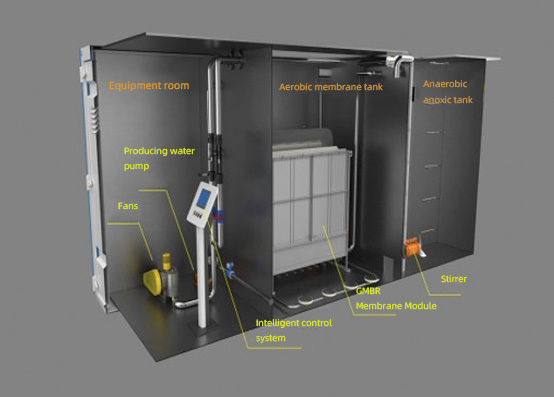

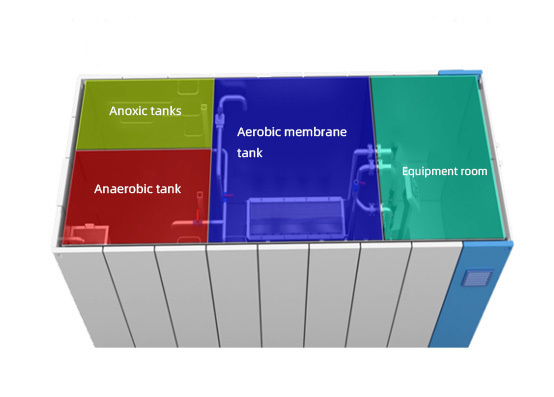

Product Composition

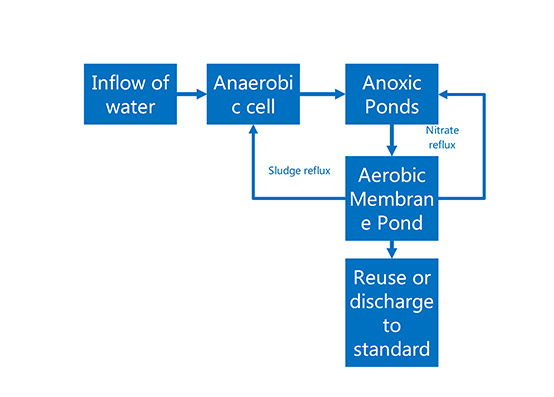

Process Characteristics
Using AAO-MBR process, the sewage and phosphorus-containing return sludge are synchronized into an anaerobic tank, where phosphorus is released by phosphorus-releasing bacteria and some organic matter is ammoniated at the same time. Anoxic pool, the nitrate and nitrite brought back by internal reflux is converted into nitrogen gas through biological denitrification and discharged into the air to remove ammonia and nitrogen. Aerobic membrane pool, nitrifying bacteria will inflow of ammonia and nitrogen through biochemical nitrification into nitrate, nitrite, while removing BOD and absorbing phosphorus, and then through the mechanical filtration of the GMBR ® membrane module, to achieve a high standard of effluent purpose.
Product Features
Customization
Oriented towards customer needs and application scenarios, providing customized solutions with a 7x24h rapid response.
Integration
Through structural and functional optimization, process units, equipment, and control modules are highly integrated, resulting in a compact design with a small footprint.
Intelligence
24/7 unattended operation, local data cloud sharing, and flexible remote control via transmission. A smart water data port is reserved.
Energy Efficiency
Focusing on process objectives, in-depth optimization of hydraulic piping, air systems, and mixing reflux, with flexible standby system combinations to reduce operating power consumption.
Stability
Adaptable to variations in water quality and volume, achieving zero fecal coliforms/SS in the effluent, meeting both discharge standards and safe reclaimed water reuse.
Specifications and Models
| Model | GT-M10 | GT-M30 | GT-M50 | GT-M80 | GT-M100 | GT-M150 | GT-M200 |
| Treatment Capacity (m3/d) | 10 | 30 | 50 | 80 | 100 | 150 | 200 |
| Length × Width × Height (m) | 2.5 × 2.0 × 2.0 | 3 × 2.2 × 2.6 | 4.6 × 2.2 × 2.6 | 7.4 × 2.2 × 2.6 | 9.2 × 2.2 × 2.6 | 10.35 × 2.5 × 3 | 12 × 2.5 × 3 |
| Inlet Pipe | DN40 | DN40 | DN50 | DN65 | DN65 | DN80 | DN80 |
| Outlet Pipe | DN25 | DN25 | DN32 | DN40 | DN40 | DN50 | DN50 |
| Overflow Pipe | DN50 | DN50 | DN65 | DN80 | DN80 | DN100 | DN100 |
| Equipment Dry Weight (t) | 2.2 | 4.8 | 6 | 8 | 8.5 | 11.5 | 13 |
Note: The above are typical models and can be customized according to the application scenario.
